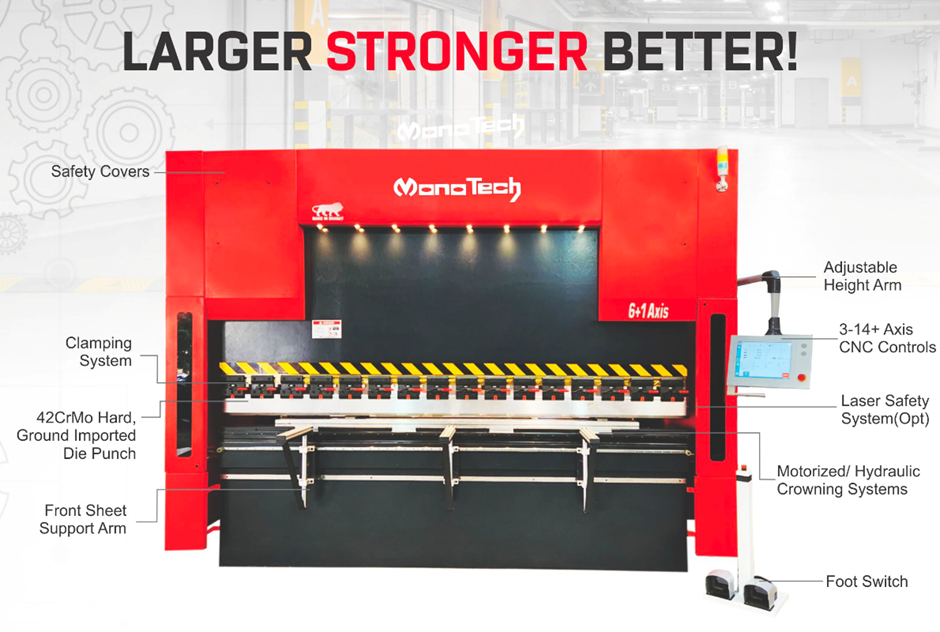

What Makes Our Design Unique?

At Monotech Engineers, we engineer our CNC Press Brakes with a laser-sharp focus on accuracy, durability, and user convenience. Our design stands apart from others due to:

FEA-Analyzed Mono-Block Frame: Minimizes deflection during heavy bending operations, ensuring dimensional accuracy and long service life.

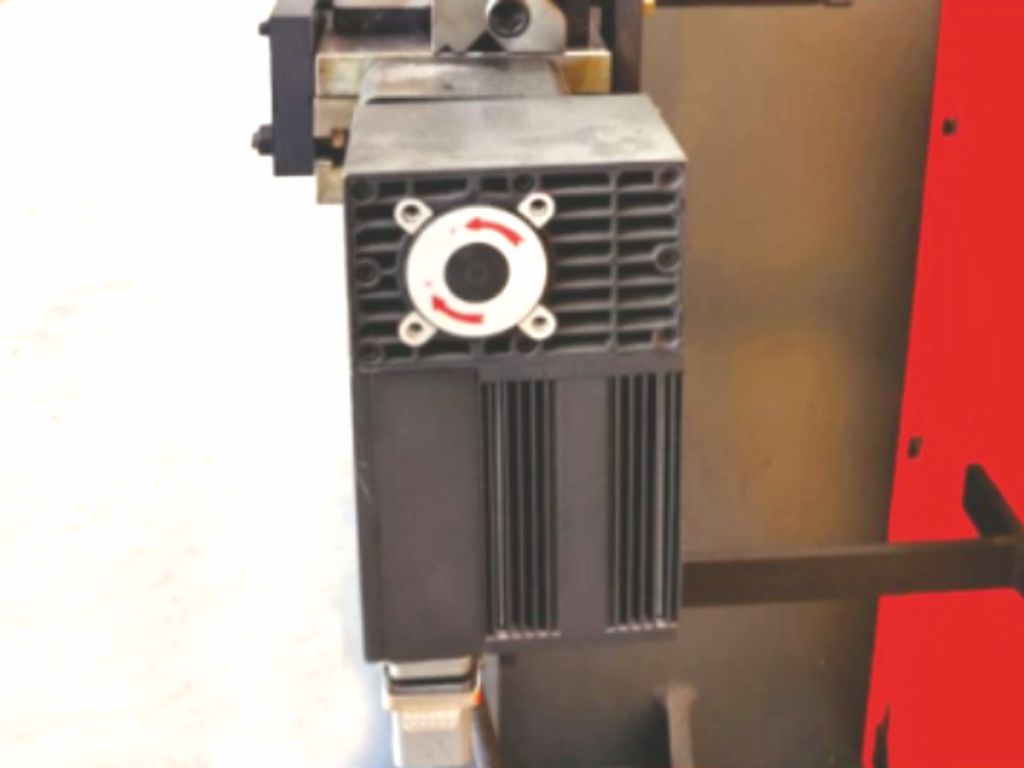

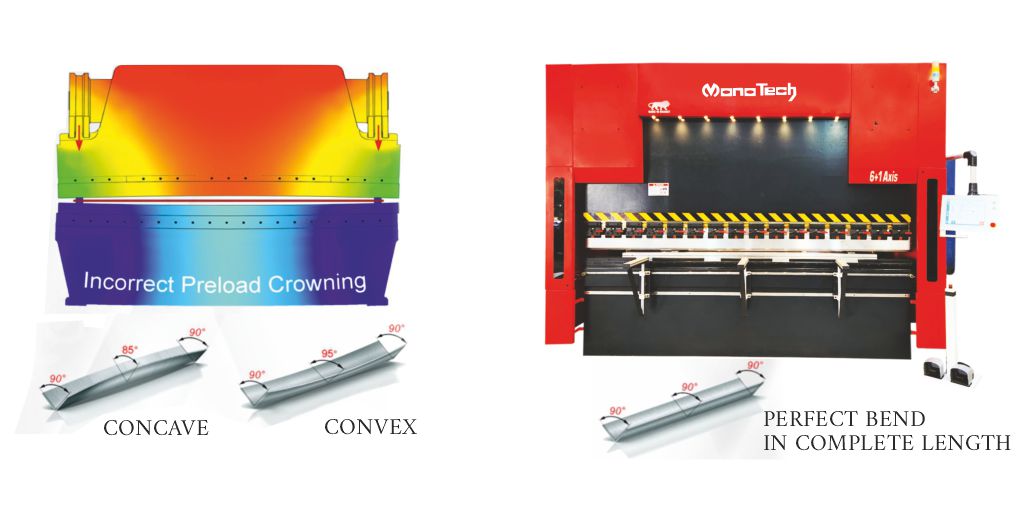

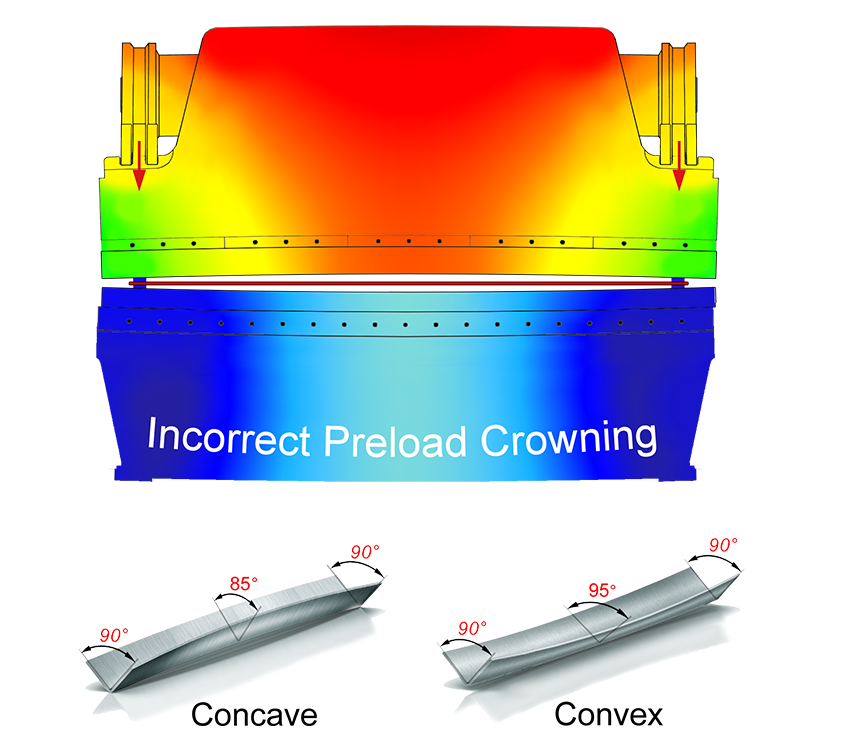

Motorized/CNC Hydraulic Crowning System: Delivers uniform angle precision across the entire bending length.
Forged & Honed Hydraulic Cylinders: Precision-machined with imported seals for jerk-free ram movement and consistent performance.

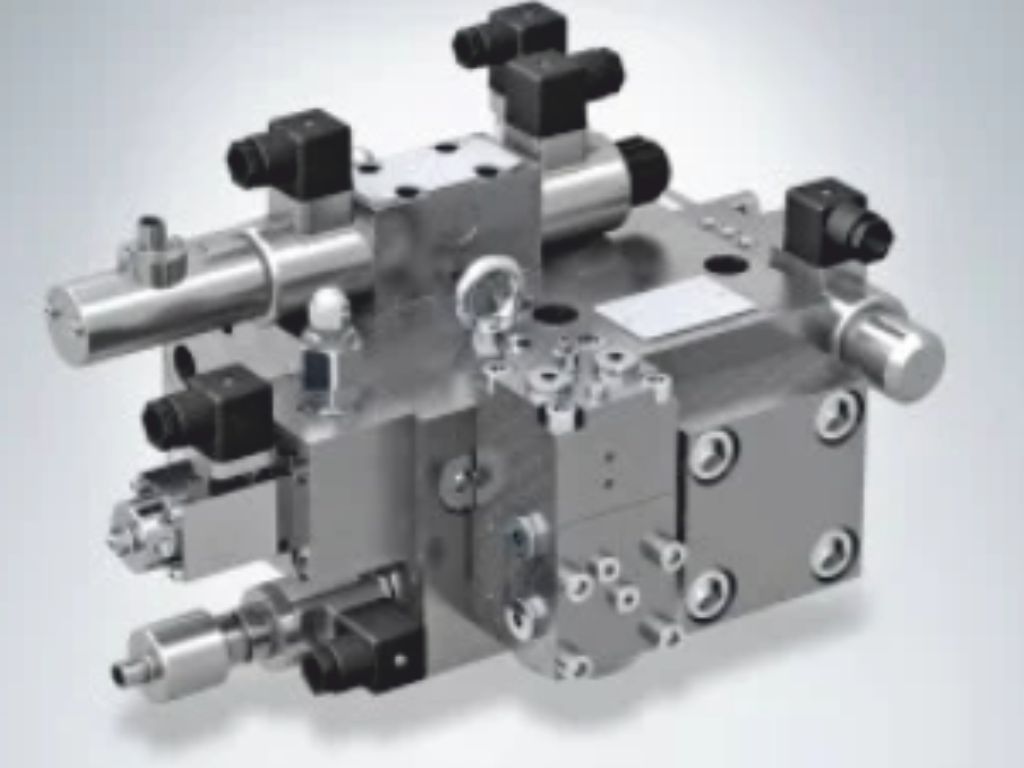

Imported HAWE Hydraulics (Germany): High-frequency response valves for real-time accuracy and energy-efficient flow control.

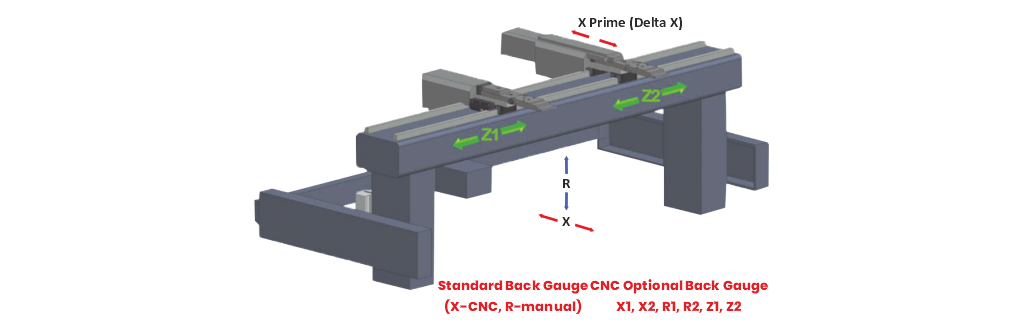

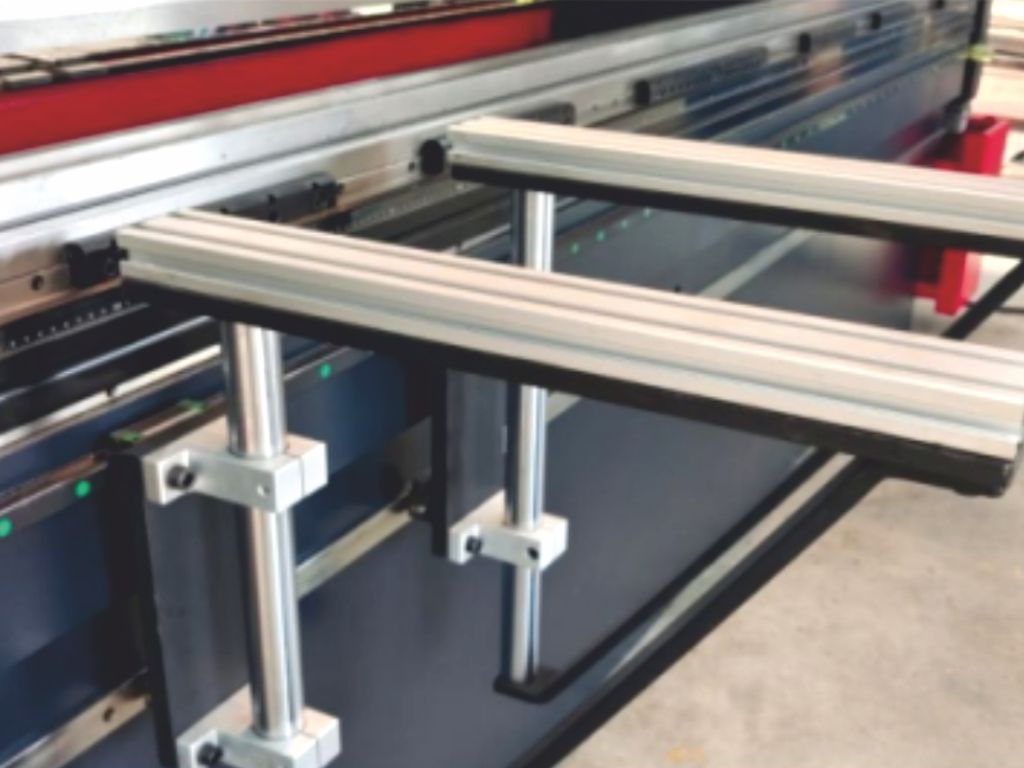

Backgauge Built on Linear Motion Guides: Allows micrometric adjustment, precision alignment, and resistance to crash.

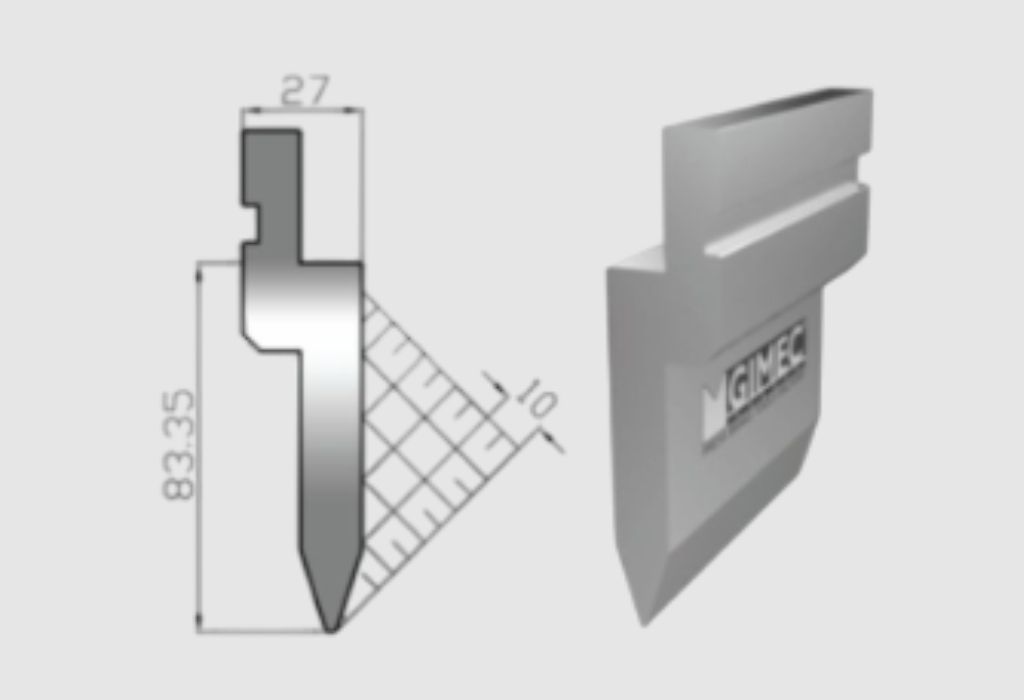

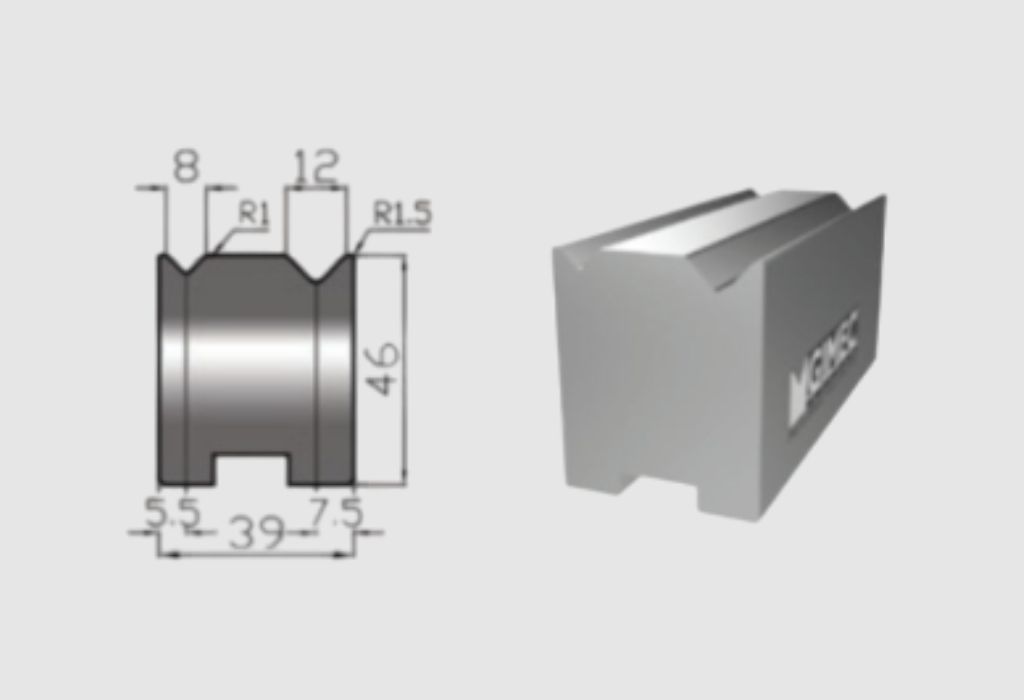

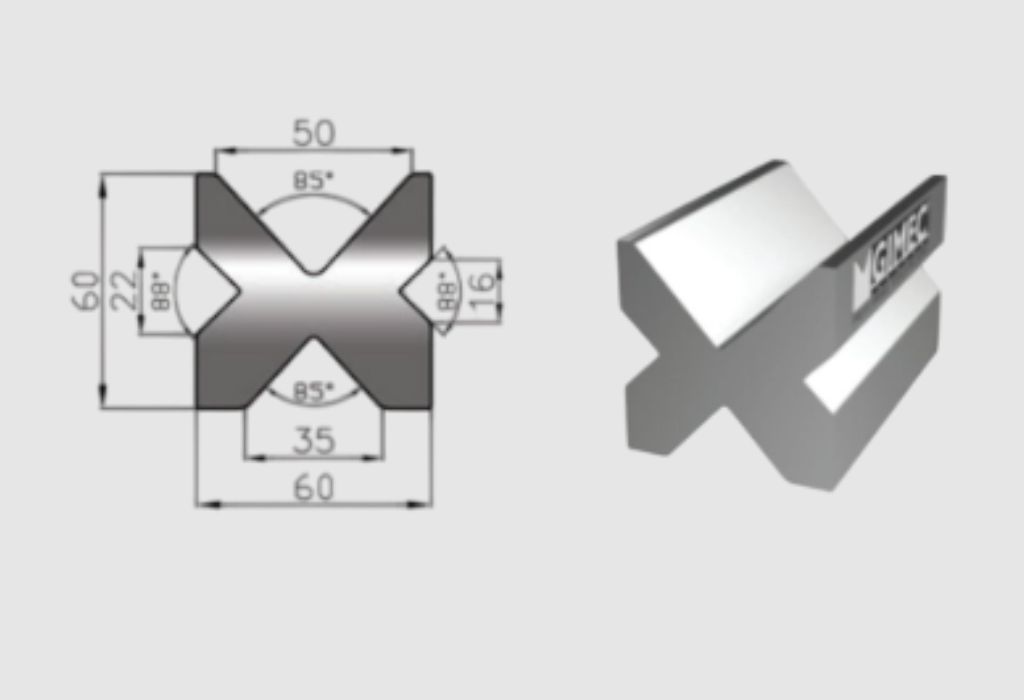

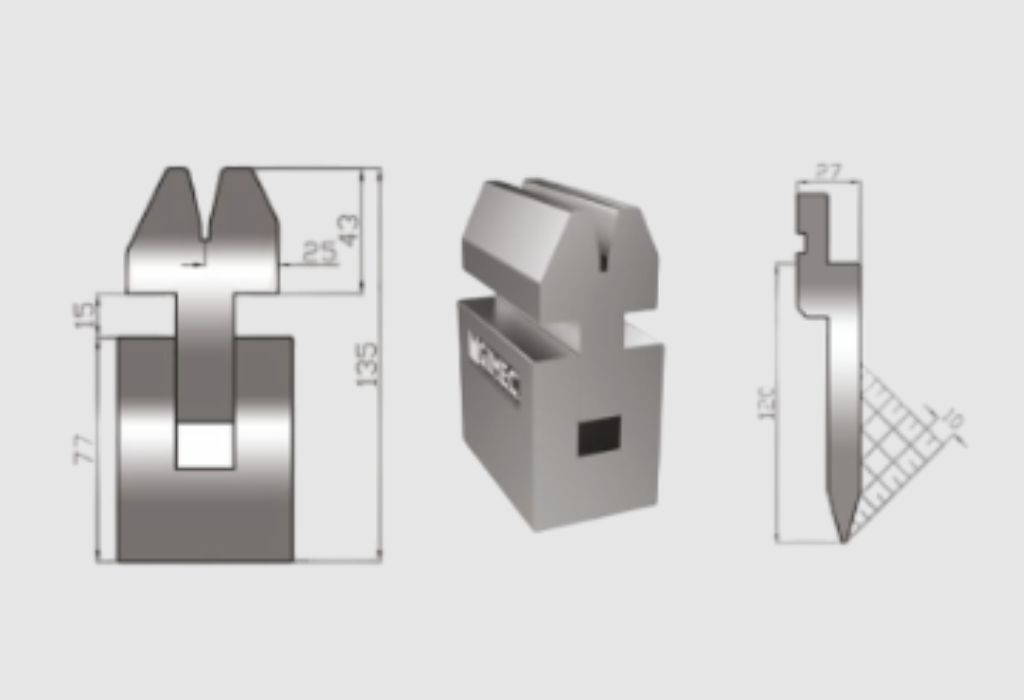

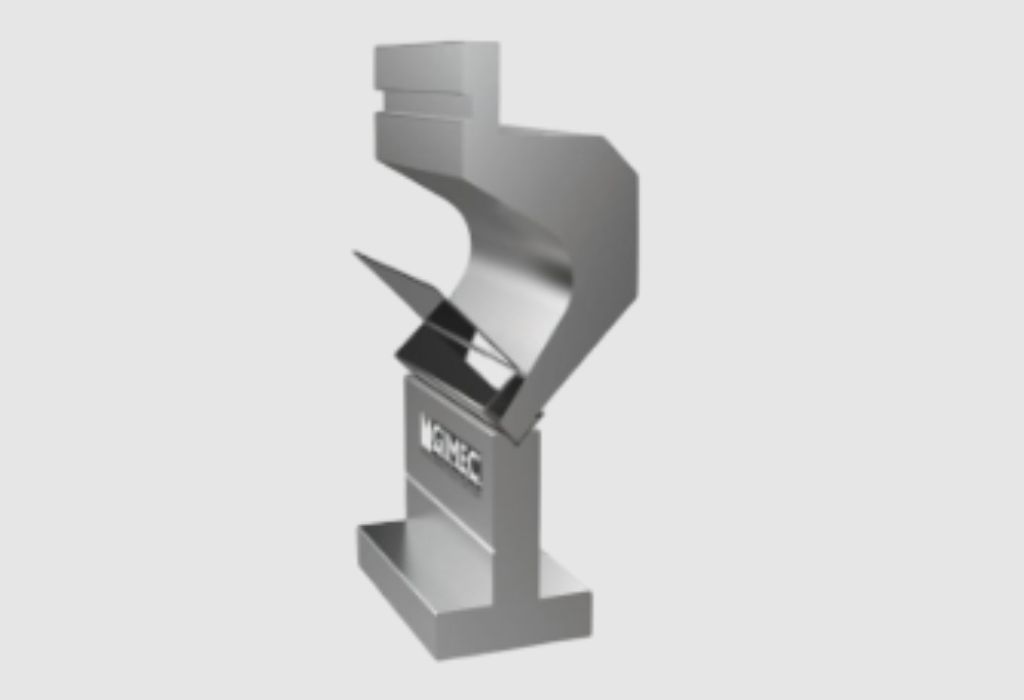

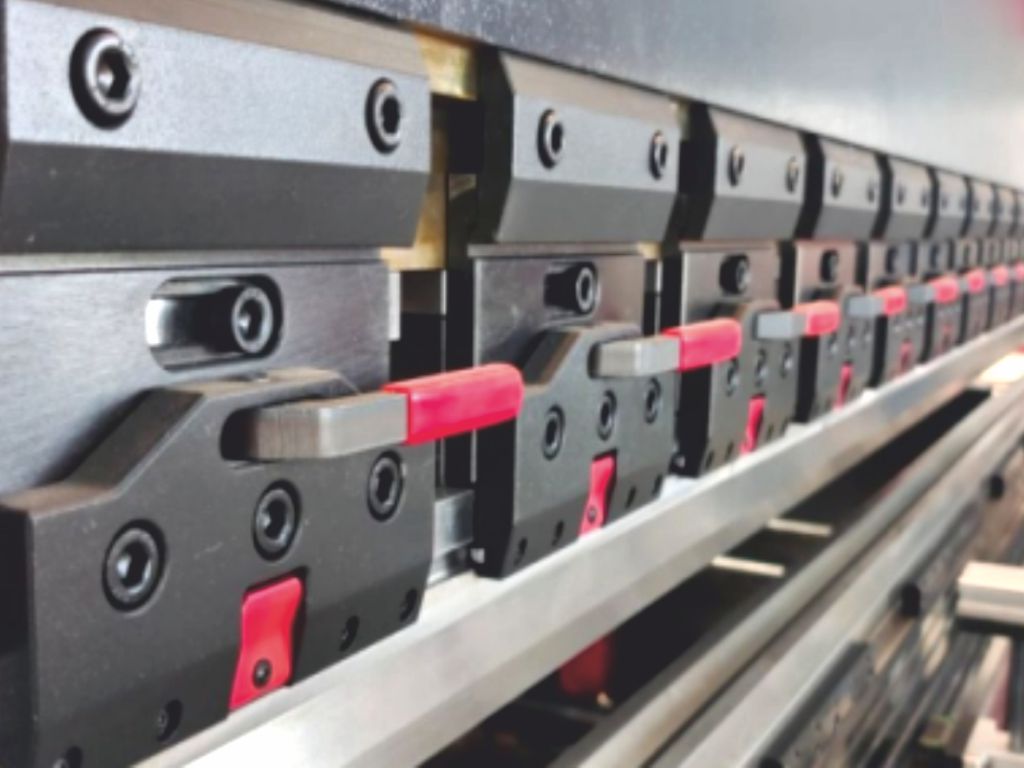

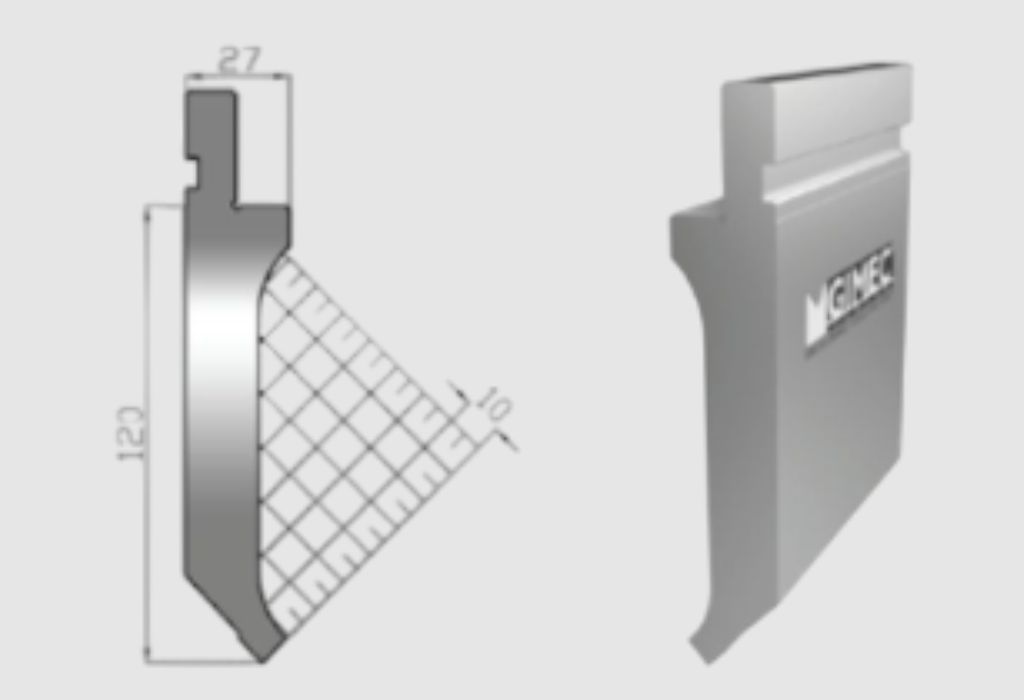

Tooling Compatibility: Segment-wise punch and die sets designed to match European standards with quick-release clamping for fast tool changes.

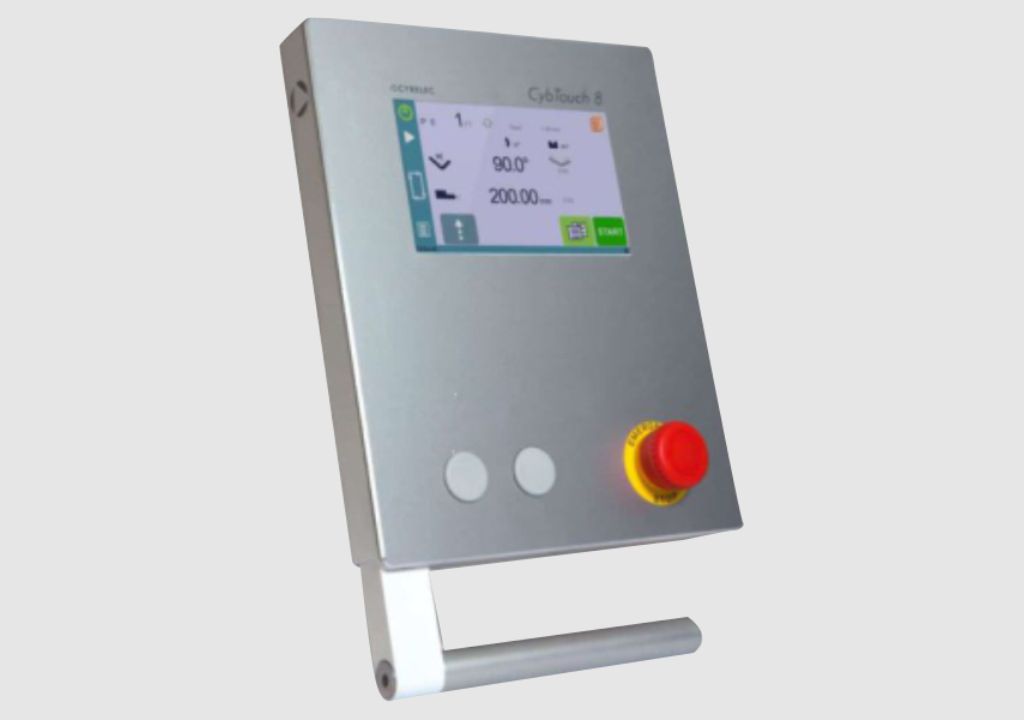

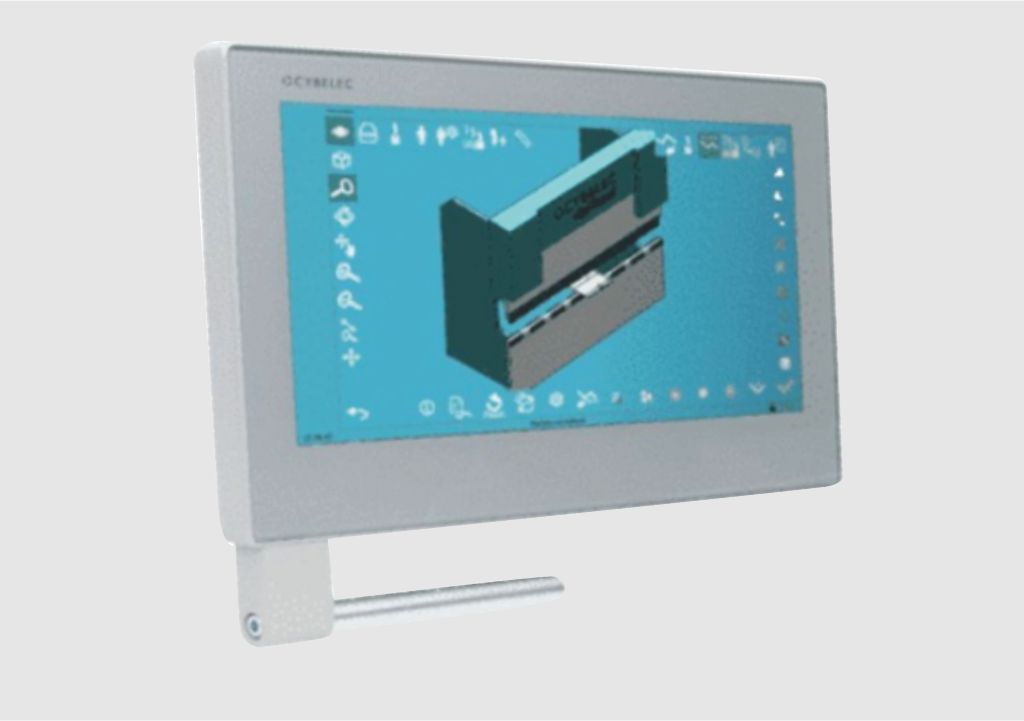

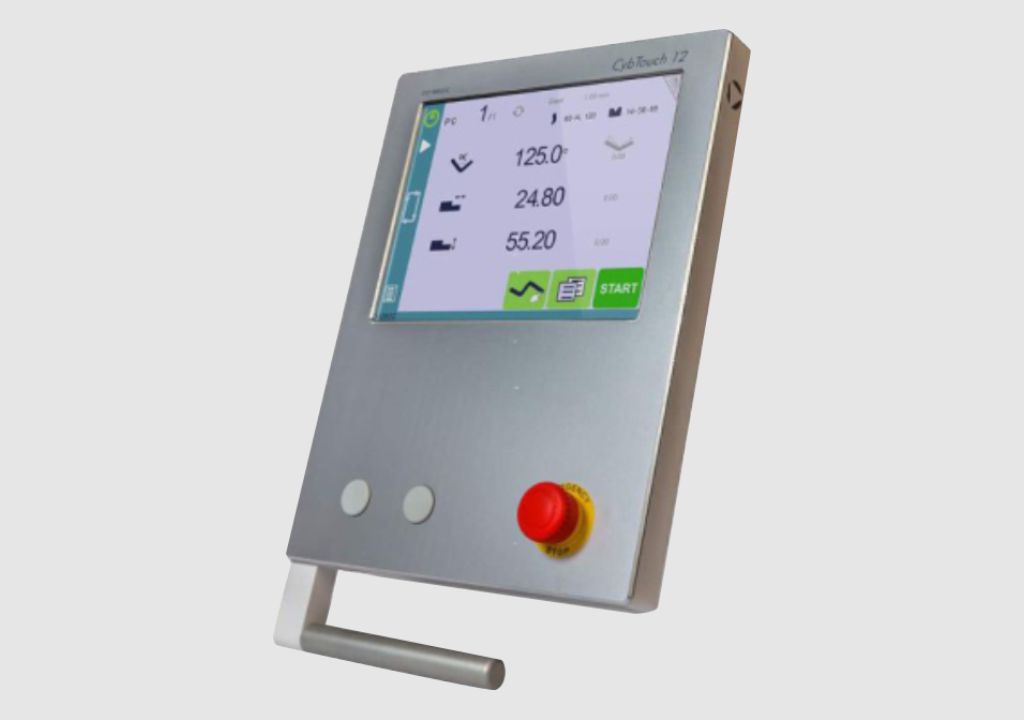

Flexible Automation Options: From basic 3+1 Axis to 6+1 Axis configurations with expandable controller upgrades.

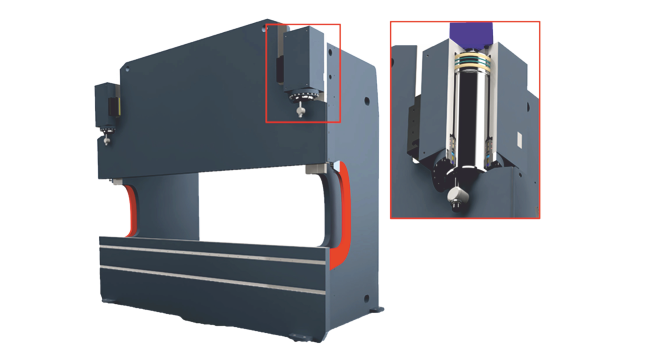

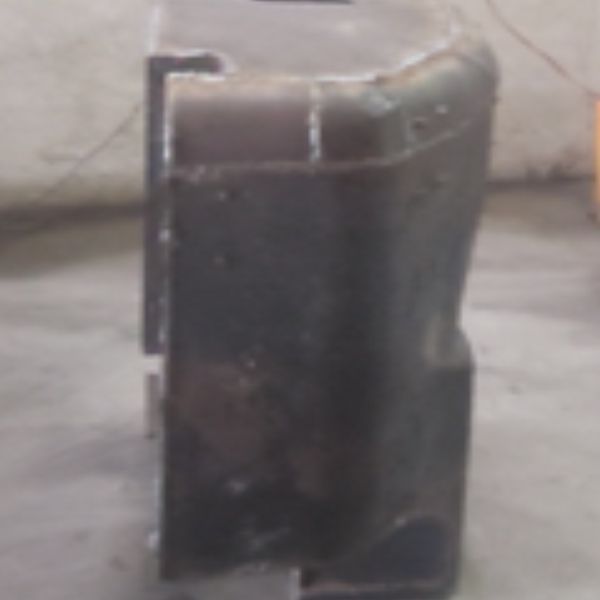

Hydraulic Cylinders With Imported Seals

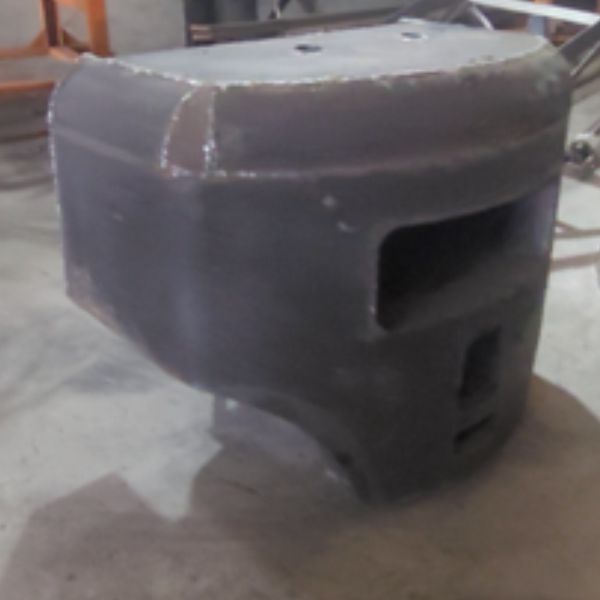

Forged & Honed Cylinder, machined on high accuracy VMC Machines & having a round joint with the ram to absorb sudden jerks.

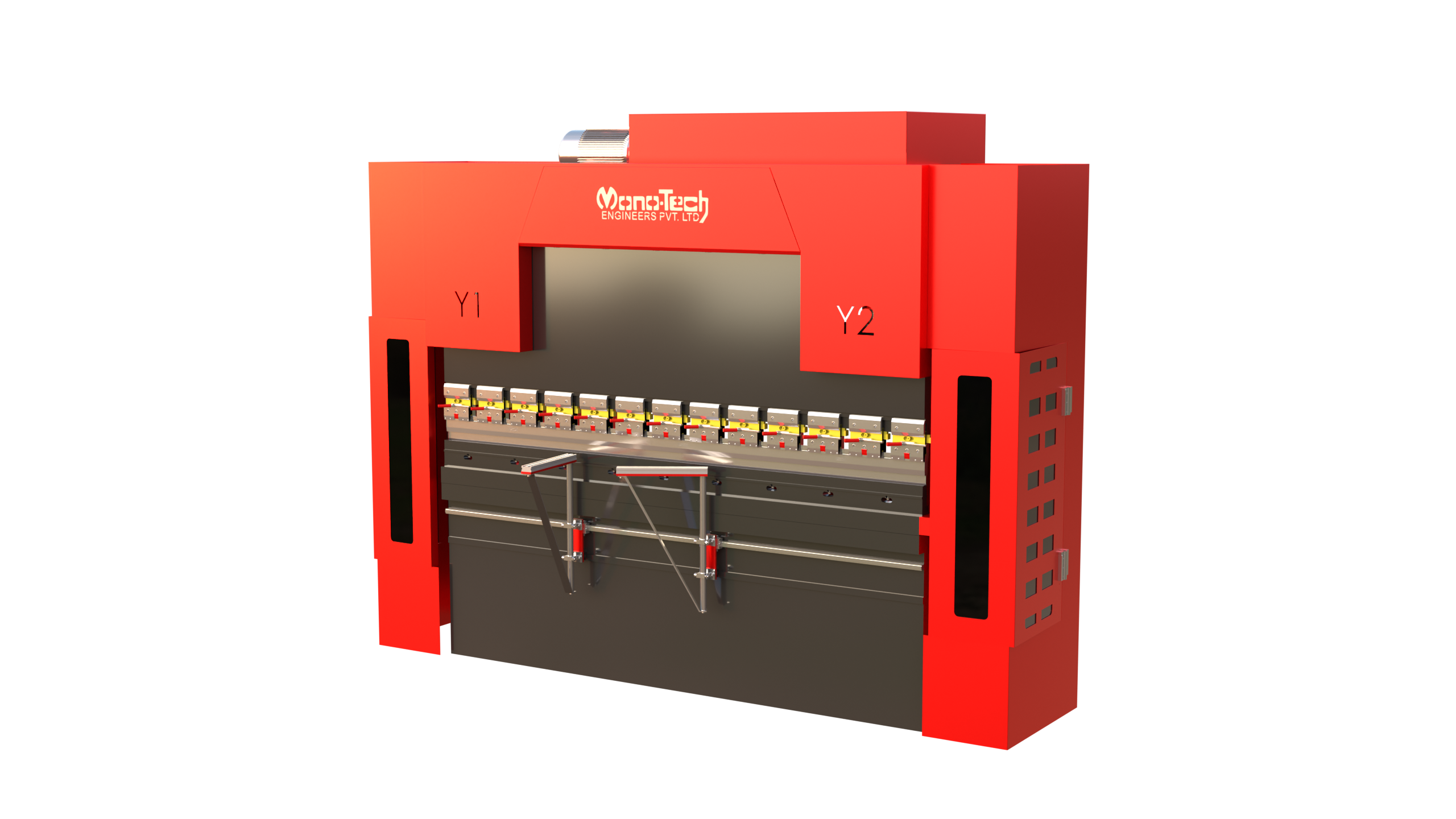

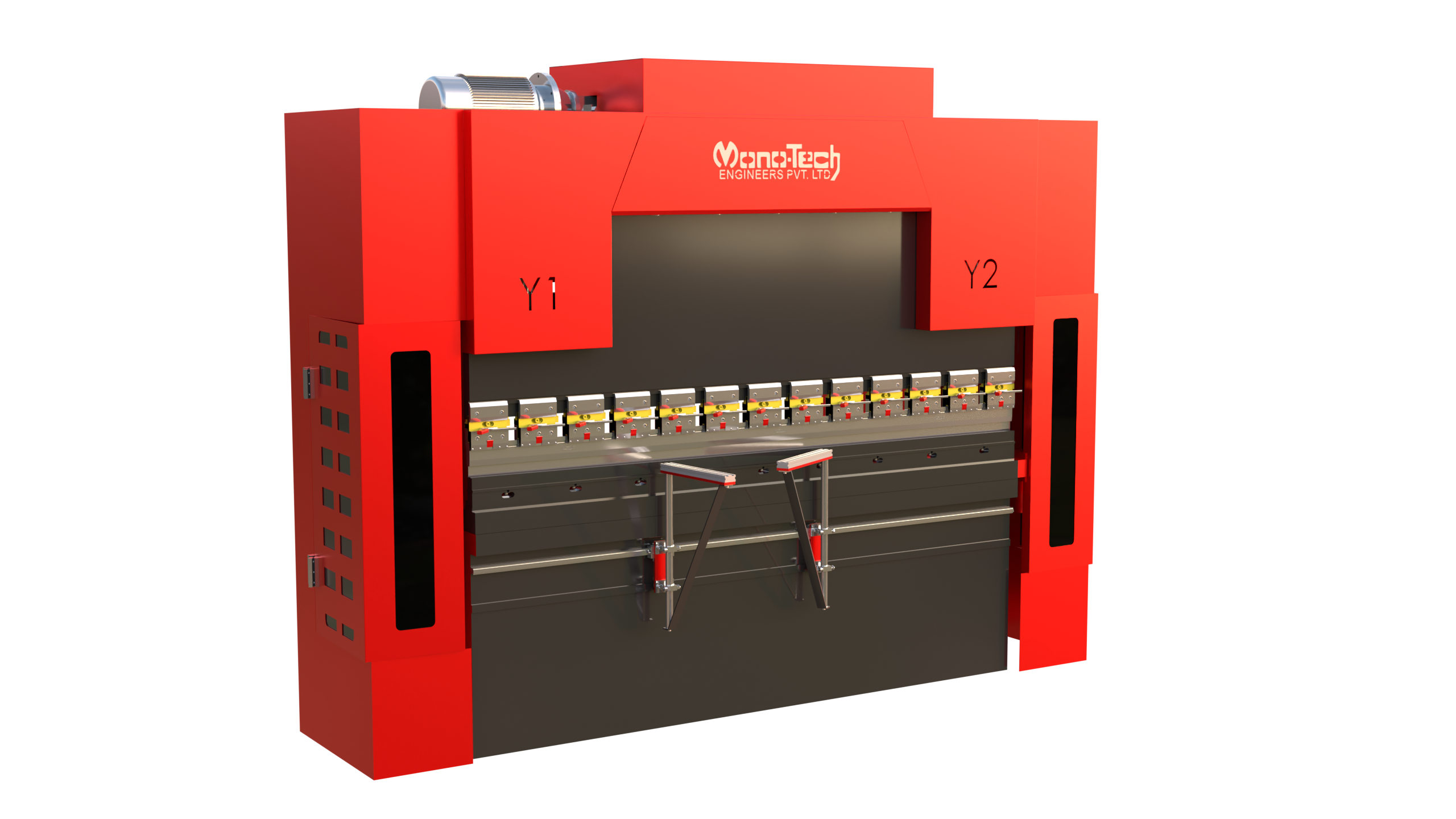

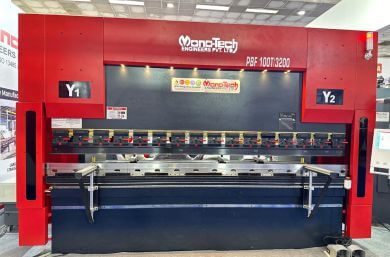

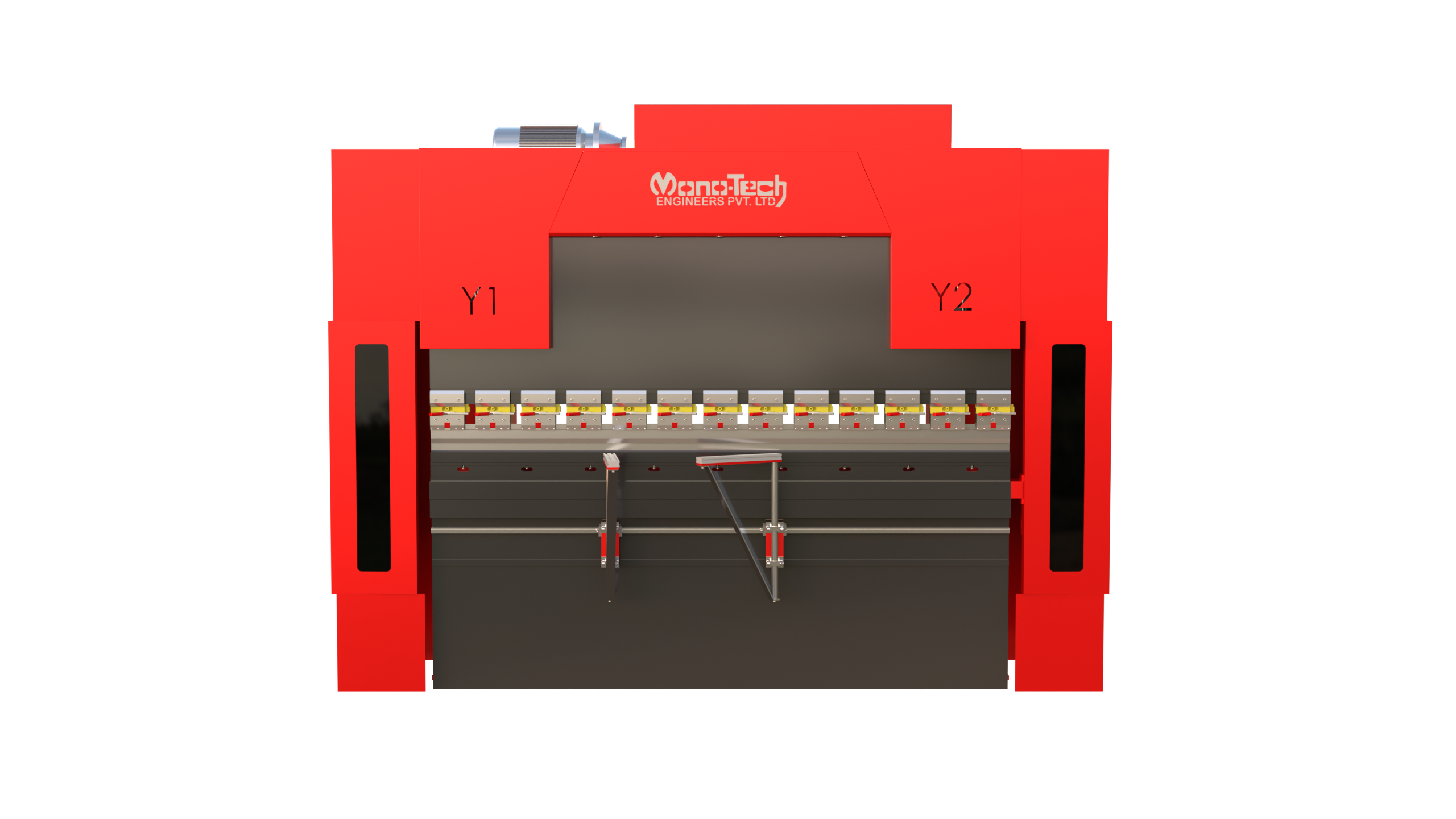

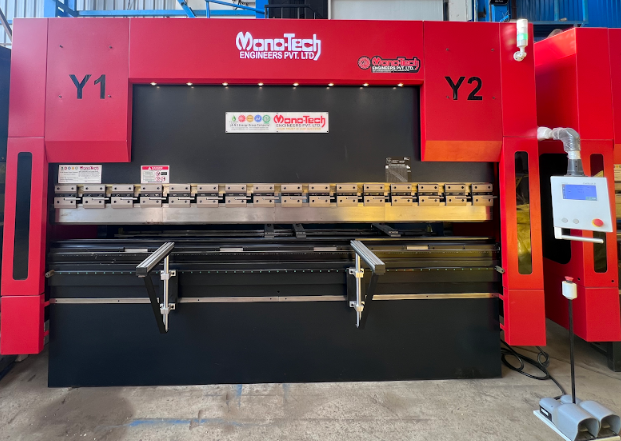

Monotech press brakes are designed to increase your productivity and decrease your per unit cost. Design innovations based on our years of experience have resulted in faster speeds on the approach, bending, return and back gauge. Monotech Press Brake features a rigid mono-block frame for minimum deflection under load. Synchronized dual cylinders and Hawe Germany valves assure smooth, stable ram. motion for high-quality, precision bends.

Product Range

Model No	Bending Force	Bending Length	Capacity	Clearpass	Ram Stroke	Open Height	Depth Throat	Speed mm/Sec			Fast Clamp	Motor H.P.
								Approach	Pressing	Return
MT-PBF-316	30 TON	1600	1600 x 2	1250	125	300	200	100	6	65	8	3
MT-PBF-625	60 TON	2500	2500 x 2	2000	150	340	200	100	6	80	12	5
MT-PBF-632	60 TON	3200	3200 x 2.5	2700	150	340	200	100	6	80	16	5
MT-PBF-825	80 TON	2500	2500 x 2	2000	150	340	250	100	6	80	12	7.5
MT-PBF-832	80 TON	3200	3200 x 2.5	2700	150	340	250	100	6	80	16	7.5
MT-PBF-1025	100 TON	2500	2500 x 3	2000	150	370	250	100	7	80	12	10
MT-PBF-1032	100 TON	3200	3200 x 4	2700	150	370	250	100	7	80	16	10
MT-PBF-1040	100 TON	4000	4000 x 5	3200	150	370	250	100	7	80	20	10
MT-PBF-1232	120 TON	3200	3200 x 4	2700	150	370	300	100	6	80	16	10
MT-PBF-1240	120 TON	4000	4000 x 5	3200	150	370	300	100	6	80	20	10
MT-PBF-1520	150 TON	2000	2000 x 4	2000	200	430	300	100	6	80	8	10
MT-PBF-1625	160 TON	2500	2500 x 8	2000	200	430	300	100	6	80	12	15
MT-PBF-1632	160 TON	3200	3200 x 6	2700	200	430	300	100	6	80	16	15
MT-PBF-1640	160 TON	4000	4000 x 5	3200	200	430	300	100	6	80	20	15
MT-PBF-2032	200 TON	3200	3200 x 8	2700	200	430	350	100	6	80	16	20
MT-PBF-2040	200 TON	4000	4000 x 6	3200	200	430	350	100	6	80	20	20
MT-PBF-2050	200 TON	5000	5000 x 5	4000	200	430	350	100	6	80	25	20
MT-PBF-2062	200 TON	6200	6200 x 4	5000	200	430	350	100	6	80	31	20
MT-PBF-2532	250 TON	3200	3200 x 10	2700	250	520	350	80	6	80	16	25
MT-PBF-2540	250 TON	4000	4000 x 8	3000	250	520	350	80	6	80	20	25
MT-PBF-2550	250 TON	5000	5000 x 6	4000	250	520	350	80	6	80	25	25
MT-PBF-2562	250 TON	6200	6200 x 5	5000	250	520	350	80	6	80	31	25
MT-PBF-3232	320 TON	3200	3200 x 12	2600	250	520	350	80	6	80	16	30
MT-PBF-3240	320 TON	4000	4000 x 10	3000	250	520	350	80	6	80	20	30
MT-PBF-3250	320 TON	5000	5000 x 8	4000	250	520	350	80	6	80	25	30
MT-PBF-3262	320 TON	6200	6200 x 6	5000	250	520	350	80	6	80	31	30
MT-PBF-4032	400 TON	3200	3200 x 16	2600	350	650	400	75	5	80	16	40
MT-PBF-4040	400 TON	4000	4000 x 12	3000	350	650	400	75	5	80	20	40
MT-PBF-4050	400 TON	5000	5000 x 10	4000	350	650	400	75	5	80	25	40
MT-PBF-4062	400 TON	6200	6200 x 8	5000	350	650	400	75	5	80	31	40
MT-PBF-5032	500 TON	3200	3200 x 20	2600	350	735	400	75	5	80	16	50
MT-PBF-5040	500 TON	4000	4000 x 16	3000	350	735	400	75	5	80	20	50
MT-PBF-5050	500 TON	5000	5000 x 12	3900	350	735	400	75	5	80	25	50
MT-PBF-5062	500 TON	6200	6200 x 10	4900	350	735	400	75	5	80	31	50
MT-PBF-6032	600 TON	3200	3200 x 25	2600	350	735	400	75	5	80	16	60
MT-PBF-6040	600 TON	4000	4000 x 20	3000	350	735	400	75	5	80	20	60
MT-PBF-6050	600 TON	5000	5000 x 16	3900	350	735	400	75	5	80	25	60
MT-PBF-6062	600 TON	6200	6200 x 12	4900	350	735	400	75	5	80	31	60

Capacities rated for MS. (LTS 45g/mm²) Bending capacities stated are only representative and non dinding. Allow extra capacity nditions. Right to change specification, features without entice reserved. Compliance with safety requirements as per local regulations is responsibility of the user

Why Choose Monotech’s CNC Press Brake Machine?

Monotech Engineers is a globally trusted name in precision sheet metal forming solutions. Here’s why our CNC Press Brakes are the first choice for manufacturers worldwide:

✔ Custom-Built to Your Needs – From tonnage to backgauge, every feature can be tailored to your application.
✔ 33+ Years of Manufacturing Excellence – Trusted across industries with over 9000+ machines installed.
✔ European-Grade Technology at Indian Pricing – Top brands like HAWE, Schneider, Siemens, and CYBELEC.
✔ In-House R&D & Manufacturing – Control over quality, faster delivery, and assured serviceability.
✔ After-Sales Support that Delivers – Dedicated support team, training, AMCs, and rapid spare dispatch.
✔ Exported to 44+ Countries – Complying with CE and ISO 9001:2015 certifications.
